Table Styles

Table styles provide a way to format a table in a consistent way so that when you change the formatting options for a style, all tables referencing that style will be changed.

The following example demonstrates how to create table styles and assign them to tables.

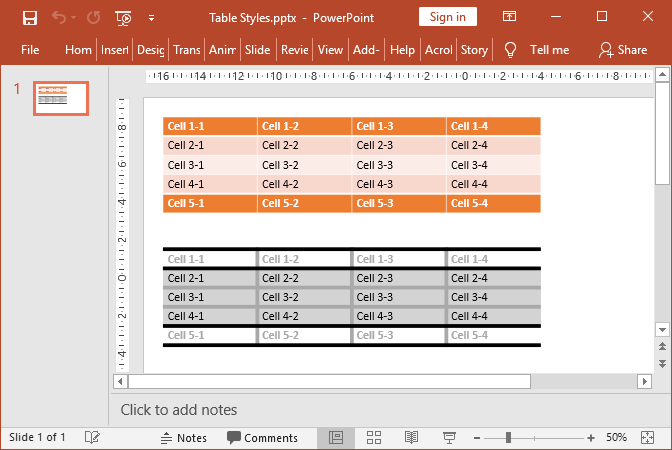

Screenshot
PowerPoint Library for C# / VB.NET Screenshot

See the full code below, use Run Example to execute.

using GemBox.Presentation;
using GemBox.Presentation.Tables;

class Sample
{
    [STAThread]
    static void Main(string[] args)
    {
        // If using Professional version, put your serial key below.
        ComponentInfo.SetLicense("FREE-LIMITED-KEY");

        PresentationDocument presentation = new PresentationDocument();

        // Create new presentation slide.
        Slide slide = presentation.Slides.AddNew(SlideLayoutType.Custom);

        int columnCount = 4;
        int rowCount = 5;

        // Create new table.
        Table table = slide.Content.AddTable(1, 1, 20, 4, LengthUnit.Centimeter);

        for (int i = 0; i < columnCount; i++)
        {
            // Create new table column.
            TableColumn column = table.Columns.AddNew(
                Length.From(5, LengthUnit.Centimeter));
        }

        for (int i = 0; i < rowCount; i++)
        {
            // Create new table row.
            TableRow row = table.Rows.AddNew(
                Length.From(8, LengthUnit.Millimeter));

            for (int j = 0; j < columnCount; j++)
            {
                // Create new table cell.
                row.Cells.AddNew().Text.AddParagraph().AddRun(
                    string.Format(null, "Cell {0}-{1}", i + 1, j + 1));
            }
        }

        // Set table style.
        table.Format.Style = presentation.TableStyles.GetOrAdd(
            TableStyleName.MediumStyle2Accent2);

        // Set table style options.
        table.Format.StyleOptions = TableStyleOptions.FirstRow
            | TableStyleOptions.LastRow
            | TableStyleOptions.BandedRows;

        // Create new table style.
        TableStyle myStyle = presentation.TableStyles.Create("My Table Styles");

        // Get "WholeTable" part style.
        TablePartStyle partStyle = myStyle[TablePartStyleType.WholeTable];

        // Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.LightGray));

        // Get table border style.
        TablePartBorderStyle borderStyle = partStyle.Borders;

        // Get "InsideHorizontal" border format.
        LineFormat border = borderStyle[TableCellBorderType.InsideHorizontal];

        // Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.DarkGray));
        border.Width = Length.From(2, LengthUnit.Millimeter);

        // Get "InsideVertical" border format.
        border = borderStyle[TableCellBorderType.InsideVertical];

        // Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.DarkGray));
        border.Width = Length.From(2, LengthUnit.Millimeter);

        // Get "FirstRow" part style.
        partStyle = myStyle[TablePartStyleType.FirstRow];

        // Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.White));

        // Get table border style.
        borderStyle = partStyle.Borders;

        // Get "Top" border format.
        border = borderStyle[TableCellBorderType.Top];

        // Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.Black));
        border.Width = Length.From(2, LengthUnit.Millimeter);

        // Get "Bottom" border format.
        border = borderStyle[TableCellBorderType.Bottom];

        // Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.Black));
        border.Width = Length.From(2, LengthUnit.Millimeter);

        // Get table text style.
        TablePartTextStyle textStyle = partStyle.Text;

        // Set text format.
        textStyle.Bold = true;
        textStyle.Color = Color.FromName(ColorName.DarkGray);

        // Get "LastRow" part style.
        partStyle = myStyle[TablePartStyleType.LastRow];

        // Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.White));

        // Get table border style.
        borderStyle = partStyle.Borders;

        // Set "Top" border line format.
        borderStyle[TableCellBorderType.Top].Fill.SetSolid(
            Color.FromName(ColorName.Black));

        borderStyle[TableCellBorderType.Top].Width =
            Length.From(2, LengthUnit.Millimeter);

        // Set "Bottom" border line format.
        borderStyle[TableCellBorderType.Bottom].Fill.SetSolid(
            Color.FromName(ColorName.Black));

        borderStyle[TableCellBorderType.Bottom].Width =
            Length.From(2, LengthUnit.Millimeter);

        // Set text format.
        partStyle.Text.Bold = true;
        partStyle.Text.Color = Color.FromName(ColorName.DarkGray);

        // Create new table.
        table = slide.Content.AddTable(1, 8, 20, 4, LengthUnit.Centimeter);

        for (int i = 0; i < columnCount; i++)
        {
            // Create new table column.
            TableColumn column = table.Columns.AddNew(
                Length.From(5, LengthUnit.Centimeter));
        }

        for (int i = 0; i < rowCount; i++)
        {
            // Create new table row.
            TableRow row = table.Rows.AddNew(
                Length.From(8, LengthUnit.Millimeter));

            for (int j = 0; j < columnCount; j++)
            {
                // Create new table cell.
                row.Cells.AddNew().Text.AddParagraph().AddRun(
                    string.Format(null, "Cell {0}-{1}", i + 1, j + 1));
            }
        }

        // Set table style.
        table.Format.Style = myStyle;

        // Set table style options.
        table.Format.StyleOptions = TableStyleOptions.FirstRow
            | TableStyleOptions.LastRow;

        presentation.Save("Table Styles.pptx");
    }
}
Imports GemBox.Presentation
Imports GemBox.Presentation.Tables

Module Samples

    Sub Main()

        ' If using Professional version, put your serial key below.
        ComponentInfo.SetLicense("FREE-LIMITED-KEY")

        Dim presentation As PresentationDocument = New PresentationDocument

        ' Create new presentation slide.
        Dim slide As Slide = presentation.Slides.AddNew(SlideLayoutType.Custom)

        Dim columnCount As Integer = 4
        Dim rowCount As Integer = 5

        ' Create new table.
        Dim table As Table = slide.Content.AddTable(1, 1, 20, 4, LengthUnit.Centimeter)

        For i As Integer = 0 To columnCount - 1
            ' Create new table column.
            Dim column As TableColumn = table.Columns.AddNew(
                Length.From(5, LengthUnit.Centimeter))
        Next

        For i As Integer = 0 To rowCount - 1
            ' Create new table row.
            Dim row As TableRow = table.Rows.AddNew(
                Length.From(8, LengthUnit.Millimeter))

            For j As Integer = 0 To columnCount - 1
                ' Create new table cell.
                row.Cells.AddNew().Text.AddParagraph().AddRun(
                    String.Format(Nothing, "Cell {0}-{1}", i + 1, j + 1))
            Next
        Next

        ' Set table style.
        table.Format.Style = presentation.TableStyles.GetOrAdd(
            TableStyleName.MediumStyle2Accent2)

        ' Set table style options.
        table.Format.StyleOptions = TableStyleOptions.FirstRow Or
            TableStyleOptions.LastRow Or
            TableStyleOptions.BandedRows

        ' Create New table style.
        Dim myStyle As TableStyle = presentation.TableStyles.Create("My Table Styles")

        ' Get "WholeTable" part style.
        Dim partStyle As TablePartStyle = myStyle(TablePartStyleType.WholeTable)

        ' Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.LightGray))

        ' Get table border style.
        Dim borderStyle As TablePartBorderStyle = partStyle.Borders

        ' Get "InsideHorizontal" border format.
        Dim border As LineFormat = borderStyle(TableCellBorderType.InsideHorizontal)

        ' Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.DarkGray))
        border.Width = Length.From(2, LengthUnit.Millimeter)

        ' Get "InsideVertical" border format.
        border = borderStyle(TableCellBorderType.InsideVertical)

        ' Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.DarkGray))
        border.Width = Length.From(2, LengthUnit.Millimeter)

        ' Get "FirstRow" part style.
        partStyle = myStyle(TablePartStyleType.FirstRow)

        ' Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.White))

        ' Get table border style.
        borderStyle = partStyle.Borders

        ' Get "Top" border format.
        border = borderStyle(TableCellBorderType.Top)

        ' Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.Black))
        border.Width = Length.From(2, LengthUnit.Millimeter)

        ' Get "Bottom" border format.
        border = borderStyle(TableCellBorderType.Bottom)

        ' Set border line format.
        border.Fill.SetSolid(Color.FromName(ColorName.Black))
        border.Width = Length.From(2, LengthUnit.Millimeter)

        ' Get table text style.
        Dim textStyle As TablePartTextStyle = partStyle.Text

        ' Set text format.
        textStyle.Bold = True
        textStyle.Color = Color.FromName(ColorName.DarkGray)

        ' Get "LastRow" part style.
        partStyle = myStyle(TablePartStyleType.LastRow)

        ' Set fill format.
        partStyle.Fill.SetSolid(Color.FromName(ColorName.White))

        ' Get table border style.
        borderStyle = partStyle.Borders

        ' Set "Top" border line format.
        borderStyle(TableCellBorderType.Top).Fill.SetSolid(
            Color.FromName(ColorName.Black))

        borderStyle(TableCellBorderType.Top).Width =
            Length.From(2, LengthUnit.Millimeter)

        ' Set "Bottom" border line format.
        borderStyle(TableCellBorderType.Bottom).Fill.SetSolid(
            Color.FromName(ColorName.Black))

        borderStyle(TableCellBorderType.Bottom).Width =
            Length.From(2, LengthUnit.Millimeter)

        ' Set text format.
        partStyle.Text.Bold = True
        partStyle.Text.Color = Color.FromName(ColorName.DarkGray)

        ' Create new table.
        table = slide.Content.AddTable(1, 8, 20, 4, LengthUnit.Centimeter)

        For i As Integer = 0 To columnCount - 1
            ' Create new table column.
            Dim column As TableColumn = table.Columns.AddNew(
                Length.From(5, LengthUnit.Centimeter))
        Next

        For i As Integer = 0 To rowCount - 1
            ' Create new table row.
            Dim row As TableRow = table.Rows.AddNew(
                Length.From(8, LengthUnit.Millimeter))

            For j As Integer = 0 To columnCount - 1
                ' Create new table cell.
                row.Cells.AddNew().Text.AddParagraph().AddRun(
                    String.Format(Nothing, "Cell {0}-{1}", i + 1, j + 1))
            Next
        Next

        ' Set table style.
        table.Format.Style = myStyle

        ' Set table style options.
        table.Format.StyleOptions = TableStyleOptions.FirstRow Or
            TableStyleOptions.LastRow

        presentation.Save("Table Styles.pptx")

    End Sub

End Module
