Export PDF file to ImageSource in WPF

The WPF Image control allows you to display images in an application. You can use GemBox.Pdf to convert a PDF page to an image.

The following example shows how to convert a PDF page to an ImageSource instance and attach it to WPF's Image control.

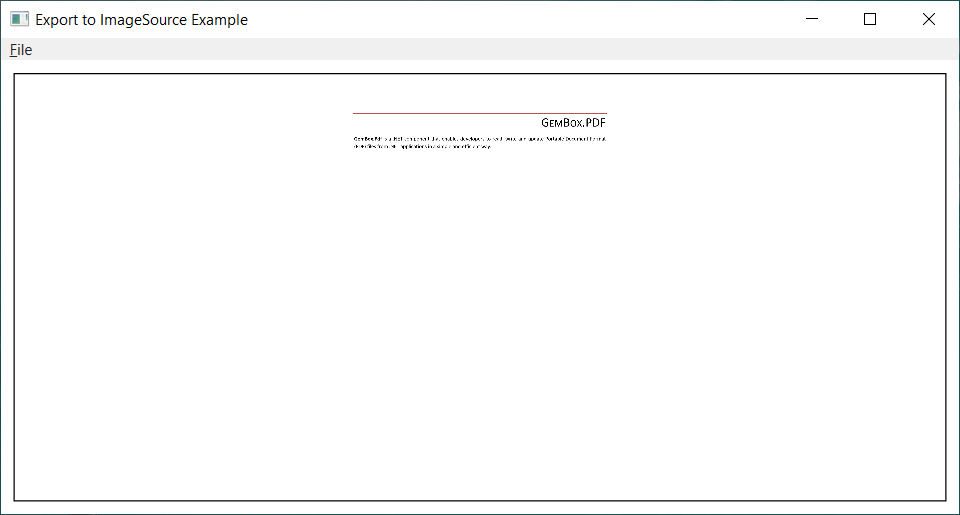

PDF page exported to ImageSource with GemBox.Pdf
Screenshot of PDF page exported to ImageSource with GemBox.Pdf
<Window x:Class="MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="Export to ImageSource Example"
        SizeToContent="WidthAndHeight">

    <DockPanel>
        <Menu DockPanel.Dock="Top">
            <MenuItem Header="_File">
                <MenuItem Header="_Open" Click="MenuItem_Click" />
            </MenuItem>
        </Menu>
        <Border Margin="10" BorderBrush="Black" BorderThickness="1">
            <Image x:Name="ImageControl"/>
        </Border>
    </DockPanel>

</Window>
using System.Windows;
using GemBox.Pdf;
using Microsoft.Win32;

public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();

        ComponentInfo.SetLicense("FREE-LIMITED-KEY");
    }

    private void MenuItem_Click(object sender, RoutedEventArgs e)
    {
        OpenFileDialog fileDialog = new OpenFileDialog();
        fileDialog.Filter = "PDF files (*.pdf)|*.pdf";

        if (fileDialog.ShowDialog() == true)
        {
            using (var document = PdfDocument.Load(fileDialog.FileName))
            {
                this.ImageControl.Source = document.ConvertToImageSource(SaveOptions.Image);
            }
        }
    }
}
Imports GemBox.Pdf
Imports Microsoft.Win32

Class MainWindow

    Public Sub New()

        InitializeComponent()

        ComponentInfo.SetLicense("FREE-LIMITED-KEY")
    End Sub

    Private Sub MenuItem_Click(sender As Object, e As RoutedEventArgs)

        Dim fileDialog = New OpenFileDialog()
        fileDialog.Filter = "PDF files (*.pdf)|*.pdf"

        If (fileDialog.ShowDialog() = True) Then
            Using document = PdfDocument.Load(fileDialog.FileName)
                Me.ImageControl.Source = document.ConvertToImageSource(SaveOptions.Image)
            End Using
        End If

    End Sub
End Class

Want more?

Next example GitHub

Check the next example or select an example from the menu. You can also download our examples from the GitHub.
